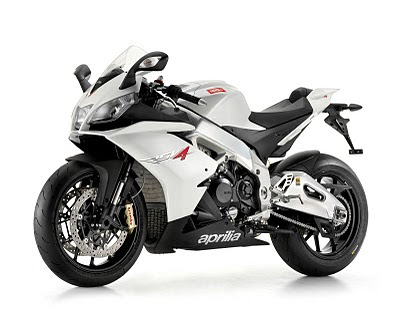

Some rare and high quality wallpapers of the 2011 Aprilia RSV4 R has been included here.2011 Aprilia RSV4 R price may be very with Addition of extra segments.Click each 2011 Aprilia RSV4 R wallpapers form 2011 Aprilia RSV4 R gallery and get high quality-high resolution wallpapers of 2011 Aprilia RSV4 R.
Model: Aprilia RSV4 R
Rating: Do you know this bike?
Engine and transmission
Displacement: 999.60 ccm (61.00 cubic inches)
Engine type: V4, four-stroke
Engine details: Longitudinal 65° V-4 cylinder
Power: 241.38 HP (176.2 kW)) @ 12500 RPM
Torque: 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM
Bore x stroke: 78.0 x 52.3 mm (3.1 x 2.1 inches)
Valves per cylinder: 4
Injection. Airbox with front dynamic air intakes. 4 Weber-Marelli 48-mm throttle bodies with 8 injectors and latest generation Ride-by-Wire engine management. Choice of three different engine maps selectable by the rider with bike in motion: T (Track), S (Sport),
Fuel control: DOHC
Magneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and â€œstick-coilâ€-type coils
Wet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Cooling system: Liquid
final drive: Chain
Clutch: Multiplate wet clutch with mechanical slipper system
Exhaust system: 4 into 2 into 1 layout, single oxygen sensor, lateral single silencer with engine control unit-controlled butterfly valve and integrated trivalent catalytic converter (Euro 3)
Chassis, suspension, brakes and wheels
Aluminium dual beam chassis with pressed and cast sheet elements. Sachs steering damper
Rake (fork angle): 24.5°
Trail: 105 mm (4.1 inches)
Front suspension: Upside-down Showa fork with Ã˜ 43 mm stanchions. Forged aluminium radial calliper mounting brackets. Completely adjustable spring preload and hydraulic compression and rebound damping. Wheel travel: 120 mm
Front suspension travel: 120 mm (4.7 inches)
Rear suspension: Twin sided aluminium swingarm
Rear suspension travel: 130 mm (5.1 inches)
Front tyre dimensions: 120/70-17
Rear tyre dimensions: 190/55-17
Front brakes: Double disc
Front brakes diameter: 320 mm (12.6 inches)
Rear brakes: Single disc
Rear brakes diameter: 220 mm (8.7 inches)
Wheels: Front: Aluminium alloy with 6 split spokes, 3.5”X17” Rear: Aluminium alloy with 5 split spokes, 6”X17”
Physical measures and capacities
Dry weight: 184.0 kg (405.7 pounds)
Power/weight ratio: 1.3118 HP/kg
Seat height: 845 mm (33.3 inches) If adjustable, lowest setting.
Fuel capacity: 17.00 litres (4.49 gallons)
Electrical: Flywheel mounted 420W alternator with rare earth magnets
Color options: Black Line, White Glam
